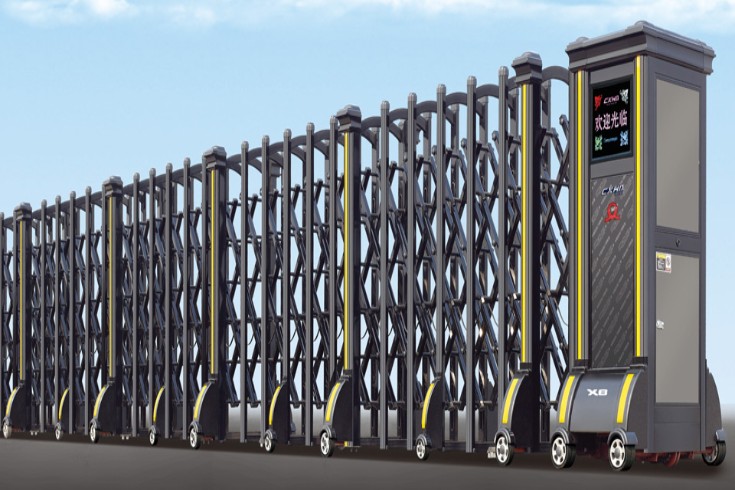

Collapsible Gate

Introduction

Entrex solution' Collapsible Gates have enhanced both the security and aesthetic appeal of various industrial and corporate premises. These gates are an excellent choice for spaces with limited room or areas lacking parking facilities. Additionally, they provide an efficient solution for partitioning or sectioning off areas within a campus. Designed with interconnected kinematic links, Collapsible Gates operate with a smooth contracting and expanding motion. They can be equipped with either single or double bottom rails to facilitate seamless movement. Crafted from high-strength metals, these gates ensure durability, flexibility, and protection while offering a sophisticated appearance. They are widely used in corporate offices, factories, industrial complexes, shopping centers, and main entrances of stadiums.

#

features of Collapsible Gates

  • Collapsible Gates are ideal for restricting pedestrian entry and exit.
  • Designed to function effectively even in extreme climatic conditions.
  • Available in stainless steel (S.S.) and aluminum materials.
  • Offers a wide range of gate designs and patterns to choose from.
  • Can be provided with tracked or trackless configurations based on site requirements or customization.
  • The drive and control unit can be integrated with various accessories for seamless operation.
  • Technical Specifications of Collapsible Gates

    • Product: Motorized Collapsible Gate
    • Dimensions:The gate is available in widths ranging from 4 meters to 30 meters and has a fixed height of 2 meters.
    • Opening Direction: Single-side or both-side operation
    • Mounting Location: Suitable for indoor and outdoor installation
    • Mounting Surface: Can be mounted on walls, RCC structures, or steel surfaces

    Automation System of Collapsible Gates

    Frame Material

  • Available in stainless steel or aluminum alloy frames.
  • Bottom Guiding

  • Single track for standard installations.
  • Double track is recommended for gate widths exceeding 7 meters.
  • Trackless system is suitable for gates with a width of less than 8 meters.
  • Motor Power

  • 250 W
  • Supply Voltage

  • 220V / 50Hz
  • Operating Temp

  • Operating Temperature Range: -25°C to +60°C
  • Top Rollers

  • Dual-type top roller assembly with bearings.
  • Accessories

  • Flashing light
  • Photocell sensor
  • Remote control with receiver
