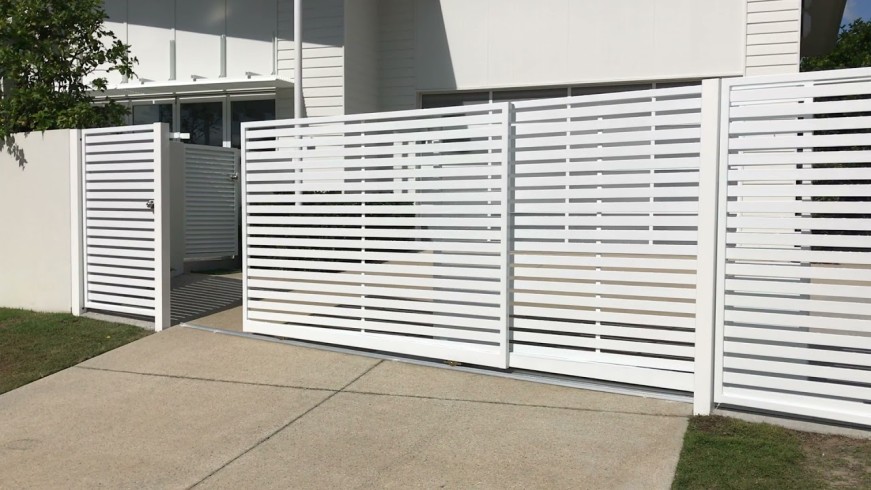

Telescopic Gate

Introduction

The telescopic sliding gate system is an ideal solution for extra-wide openings and locations with minimal or no run-back space, where conventional single-side sliding gates cannot be installed. These gates are available in two, three, or more panels, significantly reducing the required back run or parking space. With multiple leaves moving simultaneously, the gate's opening or traveling speed is greatly increased. Each telescopic gate panel operates at a different speed, ensuring that the final position is reached simultaneously, thanks to a specially designed telescopic mechanism. Telescopic gates are customizable and can be manufactured to meet specific site requirements, making them suitable for medium to heavy-duty applications.

#

features of Telescopic Gate

  • Telescopic Gate is perfect for covering wide openings where back space is limited.
  • Available in 2 to 3 leaf configurations for smooth single-slide operation.
  • Features a sleek, modern design with a strong, durable build.
  • Allows for easy partial openings as needed.
  • Delivers faster opening and closing speeds compared to traditional sliding gates.
  • Allows for easy partial openings as needed.
  • Delivers faster opening and closing speeds compared to traditional sliding gates.
  • Operates smoothly and efficiently with minimal issues.
  • Comes with electromechanical gear motors, ranging from 400 to 6000Kg for heavy-duty use.
  • Can be operated manually in case of a power outage.
  • Offers a variety of industrial gate designs to meet individual customer needs.
  • Sand blasting, hot-dip galvanizing, and painting services can be provided upon request.
  • Technical Specifications of Telescopic Gate

    • Gate Type: Telescopic Sliding Gate (2-3 leaves, customizable)
    • Load Capacity: 400 Kg to 6000 Kg
    • Opening Speed: 0.5 to 1 meter per second
    • Power Supply: 230V/380V AC
    • Manual Override: Available for power failure
    • Drive Mechanism: Steel track and precision wheels
    • Materials: Steel, aluminum, or combination
    • Finish: Powder coating, galvanization, or stainless steel
    • Safety Features: Sensors, safety edges, and interlock options
    • Pedestrian Access: Optional hinged gate
    • IP Rating: IP54 or higher
    • Temperature Range: -20°C to 60°C
    • Low Maintenance: Self-lubricating and durable parts

    Automation System of Telescopic Gates

    Motorized Drive

  • Electromechanical motor for smooth operation.
  • Control Panel

  • Regulates gate functions and settings.
  • Sensors

  • Detects obstacles for safety and auto-reversal.
  • Safety Edges

  • Stops/reverses the gate if an obstruction is detected.
  • Remote/Keypad

  • Remote or app-based control for easy access.
  • Manual Override

  • Allows manual operation during power failure.
  • Interlocking

  • Integrates with boom barriers for added security.
